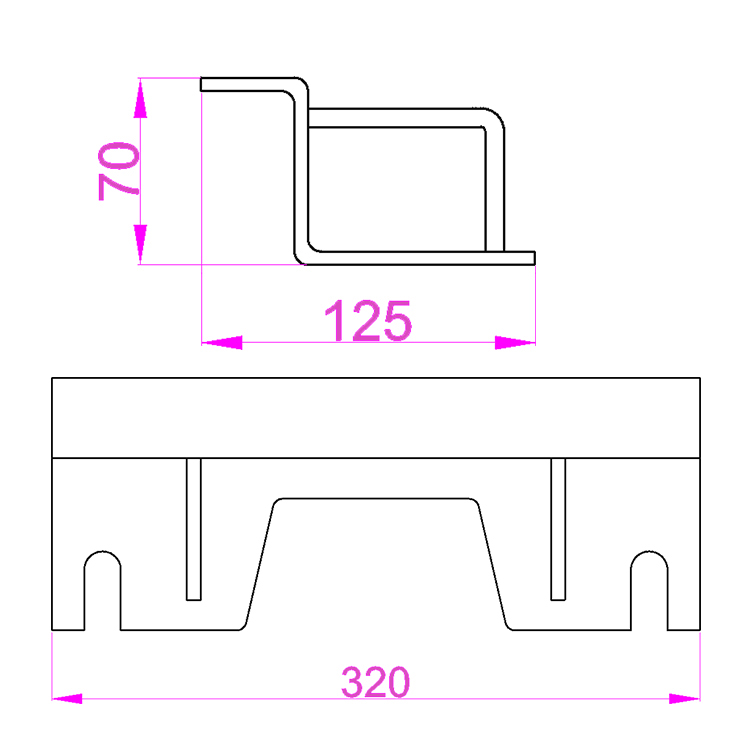

Specification of Shuttering Magnet with Adapters:

Model
|
L(mm)
|
W(mm)
|
H(mm)
|
Weight(kg)
|
WWSA-A8
|
320
|
125
|
70
|
2.1
|
Other sizes on request
|

Applications:
Concrete Formwork: Walls, columns, beams, and slabs.
Prefab Construction: Modular building assembly.
Steel Structure Fixing: Temporary welding positioning.
Key Features:

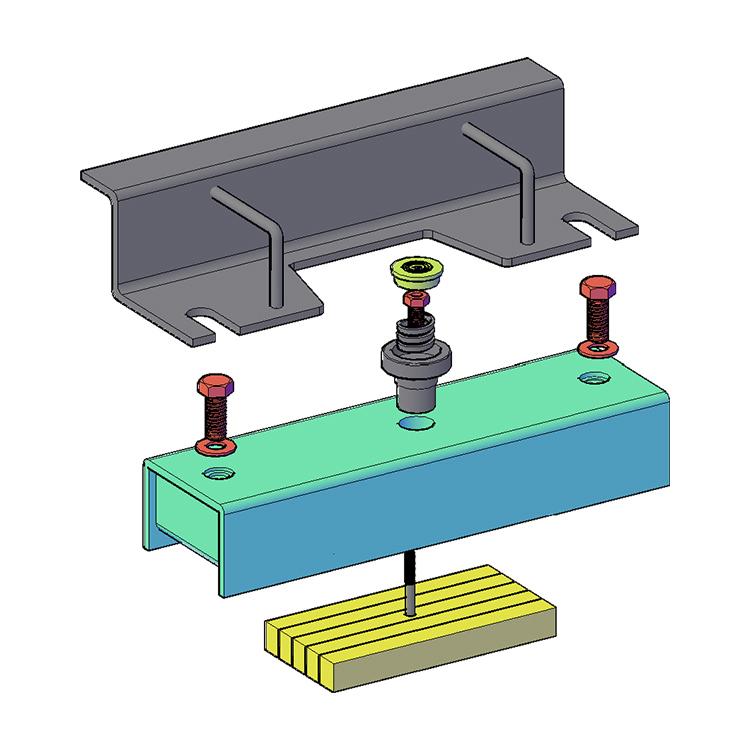

Integrated Magnet System: Provides optimum holding power through an original automatic magnet design.
Regular Pull Force Test: Proven Reliability; regular pull force tests are there to confirm that the magnetic retaining core regularly meets strict specifications.
Screw Connections: The CSMB can be used with many adapters and shuttering systems, thus allowing unlimited installation possibilities to current and future adaptations.
Quick Installation: No tools required; saves 50%+ labor time vs. traditional clamps.
Fully Customized Design: All service connections are available for a completely customized design and stability, canted housing for a long service life and safe operation.
Corrosion-Resistant: Zinc-nickel plating or epoxy coating for long-term durability in harsh environments.
Wewin Magnet Co., Ltd. – Your Partner for Custom Magnetic Formwork Solutions:
Wewin Magnet Co., Ltd. provides complete customization of CSMB with Adapters systems to meet your special production requirements. We are an established manufacturer with sufficient experience of more than 12 years in magnetic components for precast industry and will work in partnership with you to customize every part of your Shuttering Magnets with adapter in regards to both safety, efficiency and overall production performance. Limited stock for bulk orders!
